Color Measurement

Precision Colorimetry: The Science of Chromatic Consistency in Manufacturing

In the competitive landscape of precision injection molding and mechatronic assembly, visual perfection is often as vital as dimensional accuracy. For components in the medical, automotive, and consumer electronics sectors, "color" is not merely an aesthetic choice—it is a functional specification and a hallmark of brand identity. A Colorimeter is the essential metrology tool used to quantify color with mathematical precision, ensuring that every production batch remains within strict chromatic tolerances.

The Science of Human Perception: Tristimulus Colorimetry

A colorimeter operates by simulating the way the human eye perceives light. It utilizes a light source, a set of three primary color filters (Red, Green, Blue), and a high-sensitivity sensor to capture the Tristimulus Values (X, Y, Z) of a surface.

To make this data actionable for engineers, these values are typically converted into the CIE $L^ a^ b^*$ color space, which provides a 3D map of color:

L(Lightness): Ranges from 0 (black) to 100 (white).
a (Red/Green Axis): Positive values are reddish; negative values are greenish.
b(Yellow/Blue Axis): Positive values are yellowish; negative values are bluish.

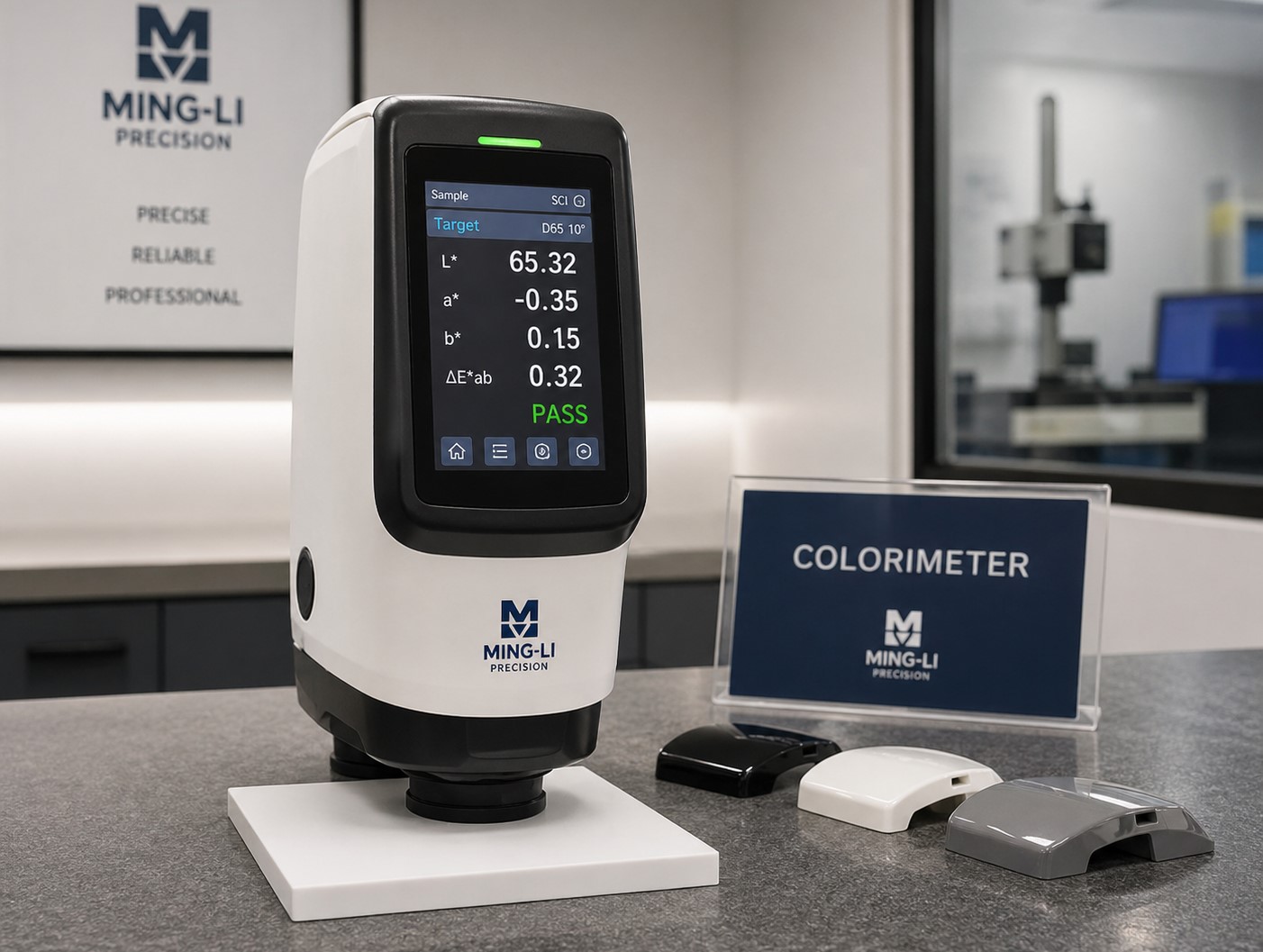

Colorimeter: Ming-Li Precision’s Capability for Accurate Color Measurement

Introduction

In modern manufacturing, product quality is no longer defined by dimensions and mechanical performance alone. Color consistency has become a critical requirement, especially for components used in automotive, electronics, and consumer products.

At Ming-Li Precision Steel Molds Co., Ltd., quality assurance extends to color measurement and control. With advanced colorimeter capability, Ming-Li helps customers ensure that every product meets strict color specifications and maintains consistency across production batches.

What is a Colorimeter?

A colorimeter is a precision instrument used to measure and analyze the color of an object based on standardized color spaces, such as:

CIE L*a*b* (most widely used)
ΔE (color difference value)

It evaluates:

Lightness (L*)
Color tone (a* and b*)
Color deviation (ΔE)

This allows objective and repeatable color evaluation, eliminating subjective visual inspection.

Ming-Li Precision’s Color Measurement Capability

Ming-Li Precision is equipped with colorimeter systems that provide:

Accurate color measurement and comparison
Fast and repeatable results
Reliable support for both development and mass production

This ensures that color quality is controlled from material selection to final product delivery.

Key Features and Advantages

1. Objective and Quantitative Color Control

With a colorimeter, Ming-Li can:

Replace visual judgment with data
Measure precise color values
Compare results against customer standards

This ensures consistent and reliable color quality.

2. ΔE Color Difference Evaluation

The system enables:

Accurate ΔE calculation
Clear pass/fail criteria
Easy identification of color variation

Typical applications require tight ΔE control to maintain product appearance and brand consistency.

3. High Repeatability and Stability

Colorimeter systems provide:
✔ Consistent measurement results
✔ Minimal operator variation
✔ Reliable long-term performance

This is essential for mass production environments.

4. Support for Various Materials and Finishes

Ming-Li can measure color on:

Injection molded plastic parts
Painted or coated surfaces
Textured or matte finishes
Transparent or semi-transparent materials

5. Integration with Quality Control Process

Color measurement is applied in:

Incoming material inspection
Sample validation (FAI)
In-process control
Final product inspection

This ensures full traceability and quality consistency.

Applications at Ming-Li Precision

• Injection Molded Plastic Parts

Ensuring consistent color across batches
Controlling color variation between cavities

• Automotive Components

Meeting strict OEM color standards
Ensuring uniform appearance

• Consumer and Electronic Products

Maintaining product aesthetics
Ensuring brand color consistency

• Coating and Surface Finishing

Verifying painting or coating results
Ensuring uniform color distribution

Why Color Measurement Matters

Color variation can lead to:

Product rejection
Brand inconsistency
Customer dissatisfaction

By using colorimeter systems, Ming-Li Precision ensures:

✔ Consistent product appearance
✔ Reduced rejection rates
✔ Improved customer satisfaction
✔ Reliable quality control

Ming-Li Precision’s Quality Commitment

With advanced inspection capabilities including:

ZEISS CMM systems
Optical measurement systems
Surface roughness testers
Roundness and form measurement systems
Material testing (MFR, moisture, density)
Hardness testing
Color measurement (Colorimeter)

Ming-Li Precision delivers:

Comprehensive quality control from material to final product
Data-driven manufacturing processes
High reliability for precision components

Combined with expertise in insert molding, 2K molding, and ultra-precision tooling, Ming-Li provides a complete Total Engineering Solution.

Conclusion

Color measurement is a critical aspect of modern quality assurance. With advanced colorimeter capability, Ming-Li Precision ensures precise, consistent, and reliable color control for every product.

Contact Ming-Li Precision

If your project requires:

Color consistency verification
High-precision mold manufacturing
Reliable injection molding solutions

Ming-Li Precision is your trusted partner for precision and quality.
