ZEISS Optical Microscope
ZEISS ZKM01-250C for Sub-Micron Precision Inspection
Introduction
As product designs continue to evolve toward micro-scale structures and ultra-tight tolerances, conventional inspection methods are no longer sufficient. Optical microscopy with sub-micron capability has become essential for ensuring product quality and reliability.

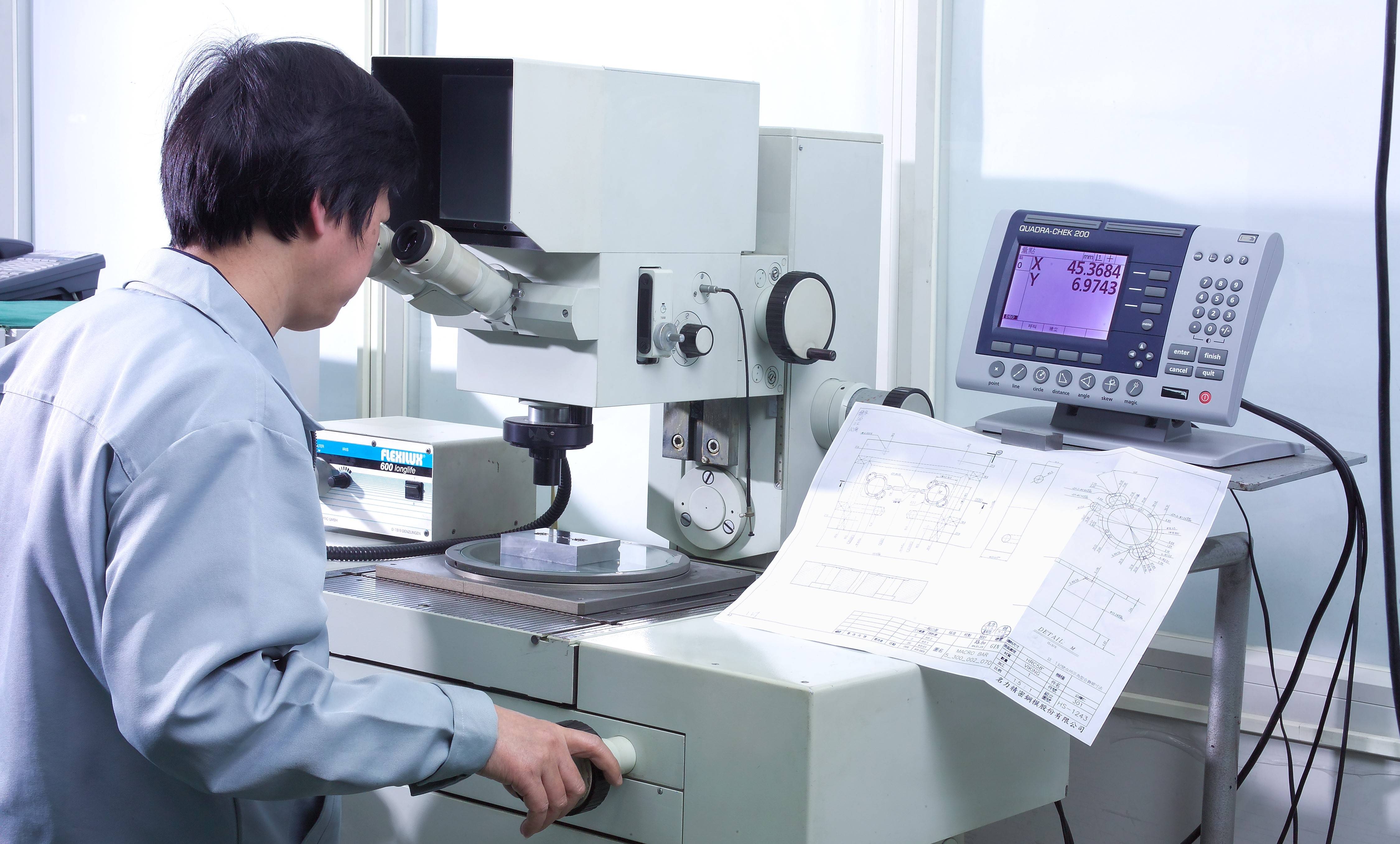

At Ming-Li Precision Steel Molds Co., Ltd., advanced metrology is a core strength. One of the key instruments supporting this capability is the ZEISS ZKM01-250C Optical Microscope, designed for high-resolution inspection and sub-micron level measurement analysis.
ZEISS ZKM01-250C: Sub-Micron Resolution for Critical Inspection
The ZEISS ZKM01-250C is a high-precision optical measuring microscope capable of delivering:
- Resolution down to 0.1 µm (0.0001 mm)
- Ultra-clear imaging for micro-feature analysis
- Reliable dimensional verification for critical components
What Does 0.1 µm Resolution Mean?
A resolution of 0.1 µm (sub-micron level) allows Ming-Li Precision to:
✔ Detect extremely small dimensional variations
✔ Inspect micro-scale features that are invisible to standard measurement tools
✔ Ensure high consistency in ultra-precision components
This level of capability is particularly important for:
- Micro injection molded parts
- Precision gears and fine structures
- High-end mold surface verification
Key Features and Advantages
1. Ultra-High Resolution Optical Imaging
The ZKM01-250C provides:
- High-contrast, high-magnification imaging
- Accurate edge detection for micro features
- Enhanced visibility for critical inspection areas
2. Non-Contact Measurement for Delicate Parts
Optical inspection ensures:
✔ No deformation of soft materials
✔ Safe measurement of complex geometries
✔ Ideal for thin-wall and micro components
3. Advanced Surface and Defect Analysis
The system enables:
- Detection of micro scratches, burrs, and cracks
- Evaluation of polishing and surface finishing quality
- Verification of laser texturing and microstructures
4. Precision Support for High-End Manufacturing
The ZEISS ZKM01-250C supports:
- Mold manufacturing validation
- Injection molding quality control
- Insert molding and 2K molding inspection
- Micro-feature dimensional verification
Applications at Ming-Li Precision
• Mold Surface Inspection
- Ensuring high-quality polishing and surface integrity
- Meeting optical and cosmetic requirements
• Micro Feature Verification
- Inspecting micro-scale structures and fine geometries
- Supporting ultra-precision mold and part development
• Defect Analysis
- Identifying molding defects and micro irregularities
- Supporting root cause analysis and process optimization
• Texture and Material Evaluation
- Verifying laser texturing results
- Evaluating surface conditions at micro scale
Why Sub-Micron Capability Matters
With 0.1 µm resolution, Ming-Li Precision can provide:
✔ Higher inspection sensitivity
✔ Better control of ultra-tight tolerances
✔ Improved product consistency and reliability
✔ Enhanced capability for advanced engineering applications
This is especially critical for industries such as:
- Automotive electronics
- Medical devices
- Precision connectors
- High-performance engineering plastics
Ming-Li Precision’s Quality Commitment
By integrating ZEISS advanced optical systems such as the ZKM01-250C, Ming-Li Precision ensures:
- Sub-micron level inspection capability
- Stable and repeatable measurement performance
- Comprehensive quality assurance for complex components
Combined with expertise in insert molding, 2K molding, and ultra-precision tooling, Ming-Li delivers a complete and reliable manufacturing solution.
Conclusion
The ZEISS ZKM01-250C Optical Microscope provides 0.1 µm (sub-micron) resolution, enabling Ming-Li Precision to achieve an exceptional level of inspection accuracy.
This capability ensures that every mold and molded component meets the highest quality standards required by global customers.
Contact Ming-Li Precision
If your project requires:
- Sub-micron precision inspection
- High-end mold manufacturing
- Advanced injection molding solutions
Ming-Li Precision is your trusted partner for precision and performance.
