Roundness & Cylindrical Profile Measurement

Mastering Geometric Precision: Roundness and Cylindrical Profile Measuring

In the world of ultra-precision manufacturing, where components often operate at high rotational speeds or require hermetic seals, dimensional tolerance is only half the story. The geometric form—specifically how "round" or "cylindrical" a part is—dictates the functional success of critical assemblies in the automotive, aerospace, and medical sectors.

Understanding Roundness (Circularity)

Roundness, or circularity, is a 2D geometric tolerance that describes how closely the cross-section of a cylindrical or spherical object approaches a mathematically perfect circle.

The Measurement Process: Typically involves rotating the part (or the sensor) $360^\circ$ around a central axis to capture the radial deviation.
Reference Circles: To quantify roundness error, metrology software applies algorithms such as:
- LSC (Least Squares Circle): The average circle where the sum of the squares of the deviations is minimized.
- MZC (Minimum Zone Circle): Two concentric circles that enclose the profile with the minimum radial separation.
- MCC (Minimum Circumscribed Circle): The smallest circle that encloses the entire profile (ideal for shafts).
- MIC (Maximum Inscribed Circle): The largest circle that fits inside the profile (ideal for holes).

The Complexity of Cylindricity

While roundness is a 2D check of a single slice, Cylindricity is a 3D tolerance that covers the entire surface of a cylinder. It simultaneously controls roundness, straightness, and taper.

The 3D Requirement: A cylindricity measurement requires taking multiple circular cross-sections along the length of the part and linking them to a common axis.
The Tolerance Zone: The zone is defined by two perfectly concentric cylinders. All points on the measured surface must lie within the radial distance between these two cylinders.

Measurement Methodologies

Achieving sub-micron accuracy in form measurement requires specialized equipment that isolates the part from external vibrations and thermal interference.

Dedicated Roundness Testers: These machines use a high-precision air-bearing spindle to rotate the part. They offer the highest possible accuracy for circular geometry, often reaching nanometer-level resolution.
Coordinate Measuring Machines (CMMs): Modern CMMs equipped with active scanning probes can measure both roundness and cylindricity. While versatile, they are often used for general form verification in high-precision environments, such as those utilizing 5-axis machining centers.
Optical Metrology: For delicate components—such as high-performance polymer rings—non-contact sensors prevent material deformation during the measuring process.

Industrial Applications and Impact

Precision form measurement is non-negotiable in high-stakes engineering environments:

Automotive & EV: Critical for the housing and internal components of IGBT/SiC Power Modules, where precise fitment ensures optimal thermal management and electrical insulation.
Aerospace: High-performance components, such as PEEK stator coil fixing rings for space agencies, require extreme cylindrical precision to survive the stresses of flight and vacuum environments.
Medical Devices: Micro-molded parts and instrumentation rely on perfect circularity to ensure smooth mechanical movement and prevent fluid leakage.

As manufacturing moves toward "zero-defect" production, the ability to accurately measure and document roundness and cylindrical profiles becomes a core competitive advantage. Integrating these metrology standards with advanced 5-axis CNC machining ensures that even the most complex geometries meet the rigorous demands of global technology leaders.

Ming-Li Precision’s ACCRETECH RONDCOM 44SD3 for High-Precision Form Analysis

Introduction

In high-precision manufacturing, dimensional accuracy alone is not sufficient. Critical components such as shafts, gears, and cylindrical parts must also meet strict form tolerances, including roundness, cylindricity, concentricity, and straightness.

At Ming-Li Precision Steel Molds Co., Ltd., advanced metrology ensures that every component meets these demanding requirements. One of the key systems supporting this capability is the ACCRETECH RONDCOM 44SD3, a high-performance instrument designed for roundness and cylindrical profile measurement.

What is Roundness and Cylindrical Profile Measurement?

Roundness and form measurement evaluates how closely a component matches its ideal geometric shape.

Typical parameters include:

Roundness (circularity)
Cylindricity
Concentricity / coaxiality
Straightness
Flatness and perpendicularity

These parameters are critical because even small deviations can affect:

Assembly accuracy
Sealing performance
Mechanical reliability

Modern systems like the RONDCOM series are specifically designed to measure these characteristics with sub-micron-level precision.

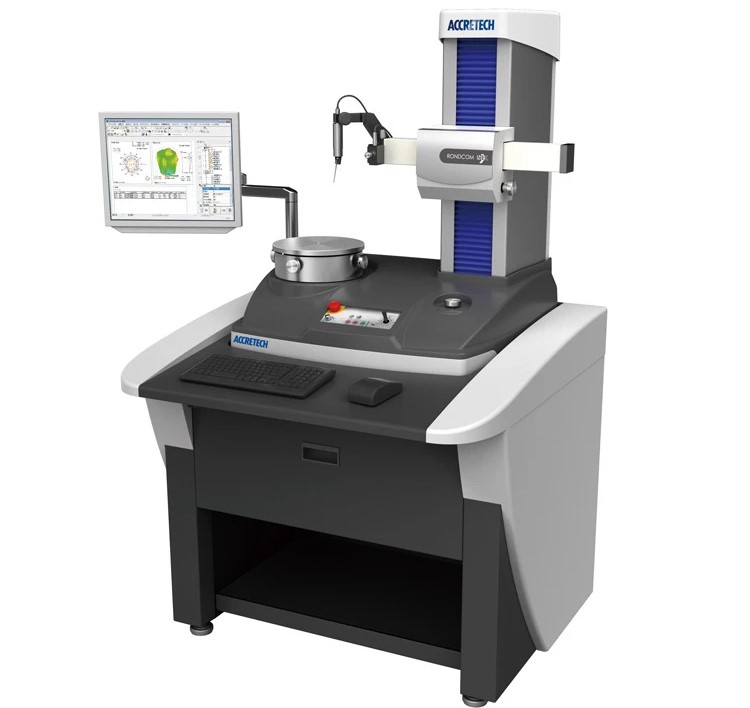

ACCRETECH RONDCOM 44SD3: High-Precision Form Measurement System

The RONDCOM 44SD3 is part of the ACCRETECH (Tokyo Seimitsu) precision metrology lineup, known for:

High-accuracy rotary measurement systems
Stable and repeatable results
Capability to measure complex cylindrical geometries

Key Technical Capability

Rotary table-based measurement for high precision
Sub-micron level form measurement accuracy
Ability to evaluate multiple geometric tolerances in a single setup

Roundness measuring systems in this series use rotational measurement principles to achieve extremely high accuracy and repeatability.

Key Features and Advantages

1. High-Precision Rotary Table Measurement

The RONDCOM system uses a precision rotary table to:

Minimize vibration and mechanical error
Ensure stable measurement results
Deliver highly repeatable form analysis

Typical roundness measurement systems can achieve rotational accuracy in the sub-micron range.

2. Comprehensive Form Measurement Capability

The system can measure:

✔ Roundness
✔ Cylindricity
✔ Concentricity / coaxiality
✔ Straightness
✔ Flatness and parallelism

This makes it ideal for complex precision components.

3. Multi-Functional Measurement in One System

With one setup, Ming-Li can perform:

Full form analysis
Profile measurement along the axis
Cross-sectional evaluation

This significantly improves inspection efficiency and data consistency.

4. High Repeatability for Mass Production

RONDCOM systems are designed for:

Stable long-term operation
High repeatability for production environments

This ensures consistent quality for high-volume manufacturing.

Applications at Ming-Li Precision

The RONDCOM 44SD3 plays a critical role in:

• Precision Mold Component Inspection

Measuring core pins and cavities
Verifying cylindrical accuracy of mold features

• Injection Molded Part Validation

Checking roundness and concentricity of plastic parts
Ensuring dimensional consistency across cavities

• Shaft and Gear Inspection

Evaluating cylindricity and runout
Ensuring proper mechanical fit and function

• High-Precision Insert & 2K Components

Verifying alignment between multi-material interfaces
Ensuring tight tolerance control in complex assemblies

Why Form Measurement Matters

Even when dimensions are within tolerance, poor form accuracy can cause:

Leakage in sealing applications
Vibration or noise in rotating parts
Assembly misalignment

By using advanced systems like the RONDCOM 44SD3, Ming-Li Precision ensures:

✔ True geometric accuracy—not just dimensional accuracy
✔ Improved product performance and durability
✔ Reduced risk in high-precision applications

Ming-Li Precision’s Quality Commitment

With advanced equipment such as:

ZEISS CMM systems
Optical measurement systems
ZEISS optical microscopes
ACCRETECH RONDCOM series

Ming-Li Precision delivers:

Sub-micron level measurement capability
Comprehensive dimensional and form inspection
Reliable, data-driven quality assurance

Combined with expertise in insert molding, 2K molding, and ultra-precision tooling, Ming-Li provides a complete Total Engineering Solution.

Conclusion

The ACCRETECH RONDCOM 44SD3 is a critical tool for ensuring roundness and cylindrical profile accuracy in high-precision components.

At Ming-Li Precision, this capability enables:

Superior product quality
Reliable performance
Consistent mass production
