ZEISS Optical measurement
In precision manufacturing, optical measurement systems have become indispensable for inspecting complex geometries, delicate features, and micro-scale components. Compared to traditional contact measurement, optical systems provide fast, non-destructive, and highly accurate inspection, especially for intricate plastic and molded parts.
At Ming-Li Precision Steel Molds Co., Ltd., advanced metrology is a core pillar of quality assurance. One of the key systems supporting this capability is the ZEISS O-INSPECT 322, a high-performance optical and multi-sensor measurement system designed to meet the most demanding inspection requirements.
What Are ZEISS Optical Measurement Systems?
ZEISS Optical Measurement Systems are designed to:
- Capture precise dimensional data using high-resolution imaging
- Perform non-contact measurement for sensitive or soft materials
- Analyze complex geometries quickly and efficiently
These systems are widely used in industries requiring tight tolerances and high repeatability, such as automotive, electronics, medical devices, and precision engineering.

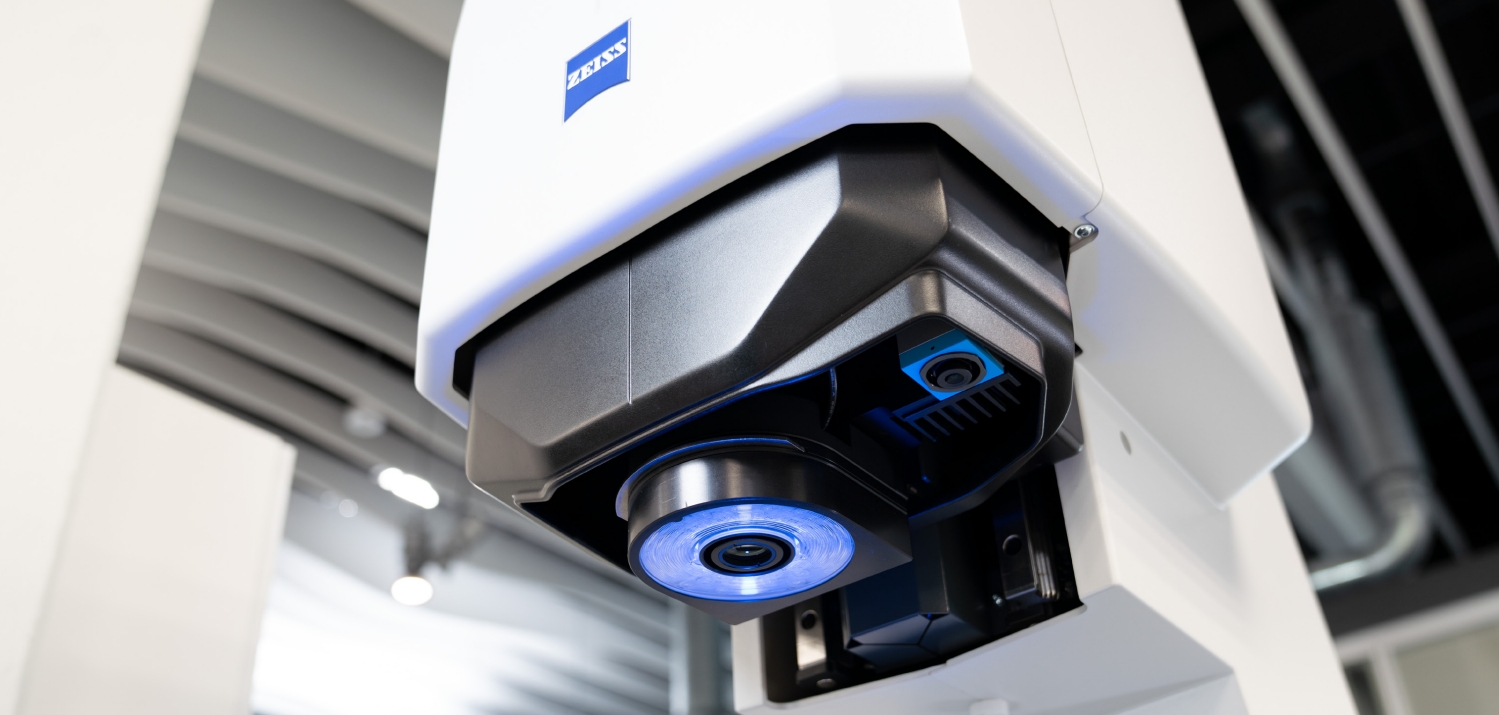

ZEISS O-INSPECT 322: Combining Optical and Tactile Precision
The ZEISS O-INSPECT 322 is not just a standard optical system—it is a multi-sensor platform that integrates:
- Optical (vision) measurement for fast, non-contact inspection
- Tactile probing for precise 3D geometry measurement
This hybrid capability allows Ming-Li Precision to handle a wide range of inspection challenges with a single system.
Key Advantages of ZEISS O-INSPECT 322 at Ming-Li Precision
1. High-Resolution Optical Measurement
The system delivers:
- Sharp image capture for edge detection
- Accurate measurement of small and delicate features
- Non-contact inspection that avoids part deformation
Ideal for:
- Thin-wall plastic parts
- Micro features
- Transparent or soft materials
2. Multi-Sensor Flexibility
By combining optical and tactile sensors, Ming-Li can:
✔ Measure complex 2D and 3D geometries
✔ Switch seamlessly between measurement methods
✔ Improve inspection efficiency and coverage
3. Precision for High-End Applications
The ZEISS O-INSPECT 322 supports inspection of:
- Precision injection molded parts
- Insert molding components
- 2K / two-shot molded products
- High-performance engineering plastics (PEEK, LCP, etc.)
This is critical for industries requiring strict dimensional control and reliability.
4. Advanced Metrology Software Integration
Equipped with ZEISS software, the system enables:
- CAD comparison and best-fit analysis
- Automated inspection routines
- Detailed measurement reporting
This ensures:
✔ Consistent inspection standards
✔ Traceable data for FAI and PPAP
✔ Faster feedback for process optimization
Applications at Ming-Li Precision
At Ming-Li Precision, the ZEISS O-INSPECT 322 is widely used for:
• Mold Validation
- Checking cavity dimensions before trial runs
- Ensuring mold accuracy aligns with design specifications
• Production Quality Control
- Monitoring critical dimensions during mass production
- Maintaining tight tolerance control
• 2K and Insert Molding Inspection
- Verifying multi-material interfaces
- Ensuring alignment and bonding precision
• Micro-Precision Measurement
- Measuring fine details that are difficult to access with probes
- Supporting micro injection molding projects
Why It Matters to Customers
With the ZEISS O-INSPECT 322, Ming-Li Precision delivers:
✔ Higher measurement accuracy
✔ Non-destructive inspection capability
✔ Faster validation and production feedback
✔ Reliable, data-driven quality assurance
This translates directly into:
- Reduced risk
- Improved product performance
- Faster time-to-market
Ming-Li Precision’s Quality Commitment
Ming-Li Precision continuously invests in advanced metrology equipment, including ZEISS optical systems, to ensure:
- Ultra-precision manufacturing capability (±1 μm level)
- Stable and repeatable production quality
- Full support for high-end engineering applications
Combined with expertise in insert molding, 2K molding, and precision tooling, Ming-Li provides a true Total Engineering Solution.
Conclusion
The ZEISS O-INSPECT 322 represents the next level of optical measurement technology—combining speed, accuracy, and flexibility.
At Ming-Li Precision, this system plays a critical role in ensuring every mold and molded part meets the highest quality standards.
For companies seeking a reliable partner in precision plastic components and advanced metrology, Ming-Li Precision stands ready to deliver.
Contact Ming-Li Precision
If your project requires:
- Optical measurement and precision inspection
- High-quality mold manufacturing
- Advanced injection molding solutions
Ming-Li Precision is your trusted partner.
