Advanced 2-Shot Molding & 2K Molding for Complex Shower Head Components

A precision Bi-injection molding case study demonstrating Ming-Li Precision's capability in complex angled-surface mold engineering and multi-material injection molding.

In modern plastic product design, 2-Shot molding, also known as 2K molding or Bi-injection molding, offers designers the ability to combine two different materials, colors, or functional characteristics into a single molded component.

However, the real challenge of 2-Shot molding is not simply injecting two materials. As product geometry becomes more complex, successful production requires close integration between product design, mold engineering, molding sequence, part positioning, sealing control, and dimensional accuracy.

A shower head component developed by Ming-Li Precision demonstrates this capability particularly well.

A Complex 2-Shot Shower Head Design

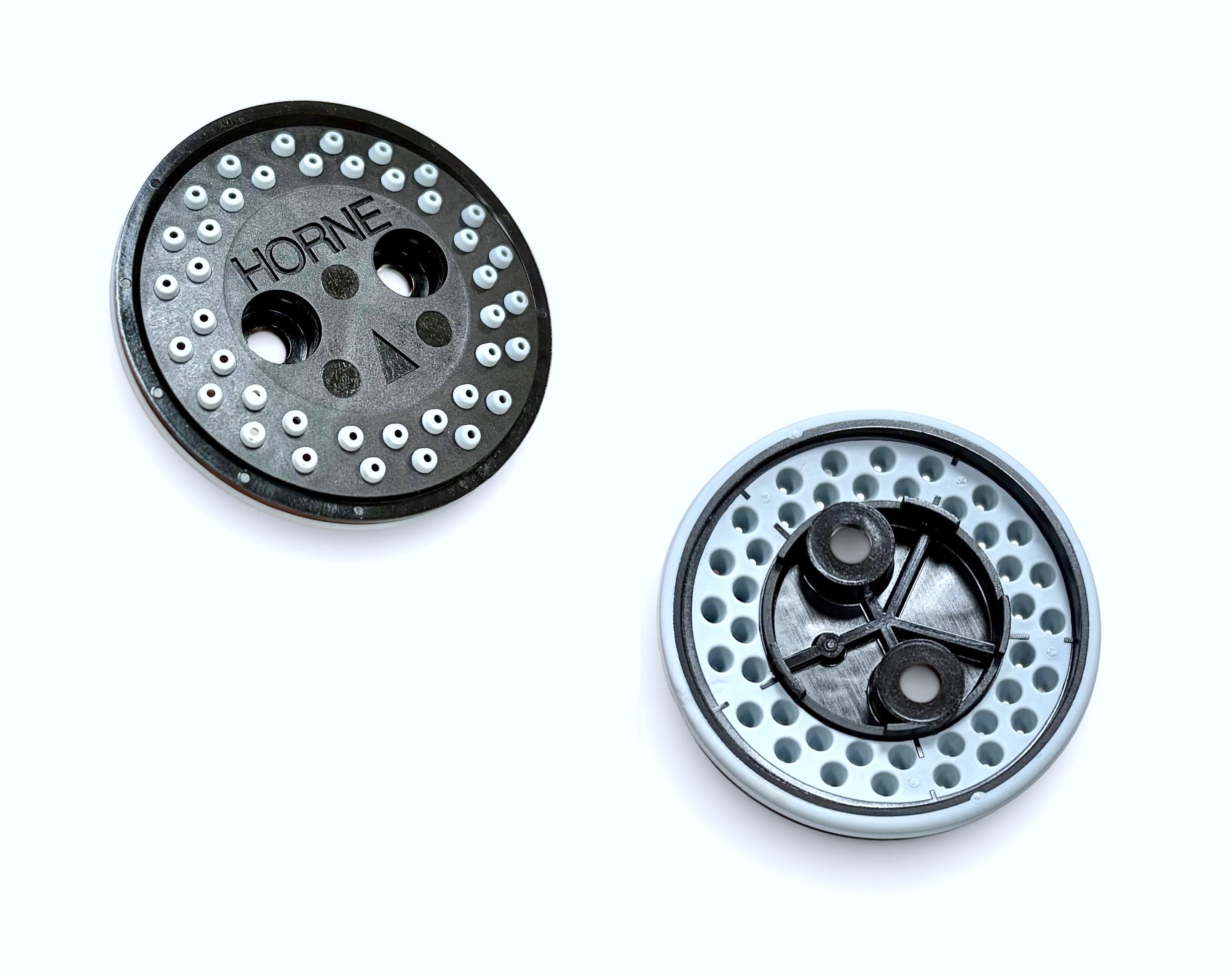

The component shown here is a shower head part manufactured using 2-Shot molding technology.

The first molded structure forms the main body of the component, while the second material creates the multiple functional features distributed around the shower head.

At first glance, the product appears to be a relatively simple circular component. However, one important design feature significantly increases the complexity of the mold.

This angled geometry creates additional challenges for both mold construction and the second-shot molding process.

Why Does the Angled Surface Make 2-Shot Molding More Difficult?

In a conventional 2K molding application with relatively flat geometry, the relationship between the first-shot part and the second-shot cavity can often be established more directly.

With an angled molding surface, the situation becomes considerably more demanding.

The mold must accurately control the three-dimensional relationship between the first-shot substrate and the second-shot cavity. Any positioning error, dimensional variation, or sealing mismatch can influence the final appearance and functionality of the second-shot features.

For this type of component, several factors must therefore be considered simultaneously:

This means that the difficulty lies not only in the injection molding process itself, but also in the overall mold concept and precision of mold manufacturing.

Precision Mold Engineering Is the Key

For Ming-Li, 2-Shot molding starts with mold engineering.

Before manufacturing the mold, our engineering team evaluates the product geometry, material combination, molding sequence, part positioning, sealing surfaces, potential deformation, and demolding conditions.

For complex angled products such as this shower head component, the mold must be designed so that the first-shot part maintains the required position and dimensional relationship during the second molding operation.

The precision of the mold components is equally important.

Small dimensional deviations in the mold can become much more significant when transferred across an angled interface. This is why high-precision machining, EDM, fitting, mold validation, and dimensional inspection are critical elements of a successful 2K molding program.

More Than Two Materials: Integration of Function and Design

One of the major advantages of Bi-injection molding is the ability to integrate multiple functions directly into a molded component.

Instead of producing separate plastic or elastomer parts and assembling them afterward, 2-Shot molding can combine different materials into one integrated component during the molding process.

Depending on the application, this technology can provide benefits such as improved sealing, soft-touch surfaces, integrated flexible features, different colors, reduced assembly operations, and improved product consistency.

For shower and sanitary applications, this can be particularly useful where a rigid structural substrate needs to be combined with softer or functional molded features.

The result is not simply a cosmetic improvement. Properly designed 2-Shot molding can reduce the number of individual components and downstream assembly processes while improving repeatability in mass production.

Complex Geometry Demonstrates Real 2K Molding Capability

Many injection molders can produce relatively simple two-color or two-material parts.

The greater engineering challenge comes when 2-Shot molding must be combined with complex three-dimensional geometry, angled surfaces, multiple small features, tight shut-off conditions, and demanding cosmetic requirements.

This shower head project is a good example.

The angled functional surface significantly increases the difficulty of mold design and manufacturing, but it also demonstrates Ming-Li's ability to integrate the complete manufacturing process.

For customers, this integration is particularly valuable during the early stages of product development. Potential molding risks can be evaluated before the mold is manufactured, allowing the product and tooling concept to be optimized together.

Ming-Li Precision 2-Shot / 2K Molding Capabilities

Ming-Li Precision has extensive experience in precision injection molding, insert molding, overmolding, and multi-material molding.

Our engineering and manufacturing capabilities support projects involving complex mold structures, precision interfaces, engineering thermoplastics, inserts, and demanding dimensional requirements.

For 2-Shot molding / 2K molding / Bi-injection molding projects, Ming-Li can support customers from initial product evaluation through mold design, manufacturing, trial, validation, and production.

From Difficult Geometry to Stable Production

A successful 2-Shot molding project depends on much more than having a two-component injection molding machine.

It requires a detailed understanding of how materials, product geometry, mold structure, manufacturing accuracy, and molding conditions interact with one another.

The special angled surface of this shower head component is a clear example. What appears to be a simple product feature can significantly increase the complexity of the mold and second-shot process.

By combining precision mold engineering with extensive injection molding experience, Ming-Li Precision transforms challenging product designs into practical and stable manufacturing solutions.

For customers developing products involving 2-Shot molding, 2K molding, Bi-injection molding, multi-material molding, insert molding, or overmolding, Ming-Li can provide engineering support beginning from the product-design stage.

Complex geometry is not only a molding challenge — it is where precision tooling capability makes the difference.
