Insert Molding: Over 1000 Mold Sets and 50 Million Parts Manufactured

Insert Molding vs. Overmolding

Benefits and advantage of insert molding and overmolding

Metal inserts and bushings are commonly used for reinforcing the mechanical properties of the plastic parts or thermoplastic elastomer products that are created through the insert injection molding process. Insert molding provides a number of benefits that will improve your company’s processes all the way down to its bottom line. Some of the benefits of insert injection molding, include:

     • Improve strength & structure

     • Improve component reliability

     • Reduces the part weight and size

     • Reduces labor and assembly costs

     • Enhance design flexibility

Insert molding and Overmolding considerations

Our experienced staffs are expert at the insert molding and overmolding process. They have the capabilities to take insert injection materials and create plastic injection inserts from those materials. However, there are certain factors that should be considered before making a final decision regarding the insert molding process. The insert molding costs must be weighed, including the insert and tooling costs. The inserts themselves also need to be able to withstand the injection molding process, as some pressures and temperatures can damage them. Other considerations that should be factored, include:

• •  Means to hold the insert during the molding process
• •  Bosses or undercuts that provide additional retention strength within the molded part
• •  Understanding which specific components and technologies are combined into a single component within the insert injection molding process

Insert Molding Process Parameters

The Insert Molding Material Properties

The Insert Specifications for insert molding

Insert Molding Production Process

Our typical insert moulded components

Many industries can benefit from incorporating insert moldings into their component design. Ming-Li precision insert moulding / overmolding cover a wide industry base including military, automotive, Inverter modules, converters, power control devices, electronics, electrical, medical, life sciences, banking equipment, aerospace, marine, furniture, building components.

The types of insert moulding / overmolding manufactured include :

• •  Electrical and electronic pins
• •  Electrical and electronic contacts and connectors
• •  Inverter modules
• •  Converters
• •  Power control devices
• •  Auto parts
• •  Switches
• •  Mechanical assemblies
• •  Life science sensors
• •  Overmolding Motor  Rotor Stator lamination stacks
• •  Solenoid valve
• •  Medical instruments
• •  Fasteners
• •  Gears

Insert Molding and Overmolding Mold Design Overview

The mold design guidelines for our basic insert moulding and overmuolding include important mold design consideration to help improve part manufacturability, increase cosmetic appearance and reduce overall production time.

Insert Molding / Overmolding is a complex endeavor, especially in light of the many variables that come into play and the possibility of reproducing mistakes in countless injection-molded copies. Ming-Li provide insert molding / overmolding services could be consulted in the early stages of part design as our expertise in the various processes can help avoid the many pitfalls that are ready and able to hamper the realization of a successful part.

In designing for insert molding / overmolding parts, a number of rules of thumb apply: overmold edges should not feather but should end abruptly and at full thickness against a stop or into an indentation. Surface texture on the overmold can significantly aid in releasing the part from the mold. It also gives the impression that the part feels softer than it actually is while disguising any flaws from the molding process. Ample draft angles help also in mold release. Mold designers need to give careful attention to gate and vent design.

There are some unique engineering challenges that designers might face when using insert molding. The advantages of added strength and versatility must be weighed against the need for a more careful design for manufacturing review. Here are some useful guidelines to consider:

1. The single biggest concern is the shrinkage of the resin. This creates hoop stress around the fitting that can cause cracking over time, especially if the part is under mechanical tension. This is how you can counteract this:
   •         •  Use resin material with a relatively low shrinkage rate.
   •         •  Use resin material that has been strengthened with fillers.
   •         •  Surround the insert with a larger area of plastic.
   •         •  Support the insert with bosses and ribs.
   •         •  Preheat the inserts before molding. This allows the resin and the insert to cool and shrink in tandem, thus relieving some of the stress between the materials.
2. Use pre-manufactured inserts that have knurled surfaces to help lock them in place.
3. Avoid sharp corners and use rounded profiles instead to reduce stress.
4. Design the inserts so that they’re slightly recessed. This helps to avoid damaging the tool.

X-ray CT 3D Scan Application on Insert Molding Parts Inspection By Ming-Li

1. Introduction to X-ray CT 3D Scanning for Inspection

X-ray Computed Tomography (CT) 3D scanning is an advanced, non-destructive testing method used to inspect both the external and internal features of insert-molded parts. This technology creates detailed 3D images that allow for comprehensive inspection, ensuring that the parts meet strict quality standards.

2. Key Applications of X-ray CT 3D Scanning in Insert Molding Inspection

• •  Internal Structure Verification: X-ray CT scans allow manufacturers to inspect the internal placement of inserts within the molded plastic without having to cut open the part. This ensures that the inserts are correctly positioned and fully encapsulated, preventing issues like misalignment or incomplete bonding.

• •  Detection of Voids and Defects: The technology is highly effective in detecting voids, cracks, or any other internal defects that could compromise the integrity and performance of the insert-molded part. These defects are often invisible through traditional inspection methods, making X-ray CT scans particularly valuable.

• •  Dimensional Accuracy and Tolerance Checking: X-ray CT 3D scanning provides precise measurements of complex geometries within the insert-molded part, ensuring that all dimensions are within the specified tolerances. This is critical for maintaining the functionality and reliability of the part, especially in applications where precision is paramount.

• •  Material Integrity and Bonding: The technology also allows for the assessment of the bonding quality between the insert and the surrounding plastic. By analyzing the interface between different materials, X-ray CT scans can identify potential weak points or incomplete bonding that could lead to part failure.

3. Advantages of Using X-ray CT Scanning for Inspection

• •  Non-Destructive Testing: Unlike traditional methods that might require disassembly or cutting the part, X-ray CT scanning is entirely non-destructive, allowing the part to be inspected without any physical alteration.

• •  Comprehensive Analysis: The ability to generate a complete 3D image of the part provides a more thorough inspection compared to surface-level methods, ensuring that all potential issues are identified and addressed.

• •  Efficiency in Quality Control: X-ray CT scans streamline the quality control process by quickly identifying defects, reducing the need for multiple inspection steps, and minimizing the risk of undetected issues.

4. Industry Examples of X-ray CT Scanning in Insert Molding Inspection

• •  Automotive Parts: In the automotive industry, insert molding is used for components that require a combination of metal and plastic. X-ray CT scanning ensures that these components meet safety and durability standards by thoroughly inspecting internal structures and material interfaces.

• •  Medical Devices: For medical devices, where even a minor defect can have significant consequences, X-ray CT scanning provides the precision and reliability needed to ensure that all parts meet the stringent requirements of the healthcare industry.

• •  Consumer Electronics: In electronics, where the placement and integrity of conductive inserts are critical, X-ray CT scanning ensures that parts are free from defects that could affect performance, such as misalignment or incomplete encapsulation.

X-ray CT 3D scanning is a crucial technology for the inspection of insert-molded parts, offering unparalleled accuracy and reliability. By providing detailed insights into the internal structures of these parts, it helps manufacturers maintain high standards of quality, ensuring that the final products are both functional and durable.

Our Insert Molding technology application for the next generation eco-friendly automotive

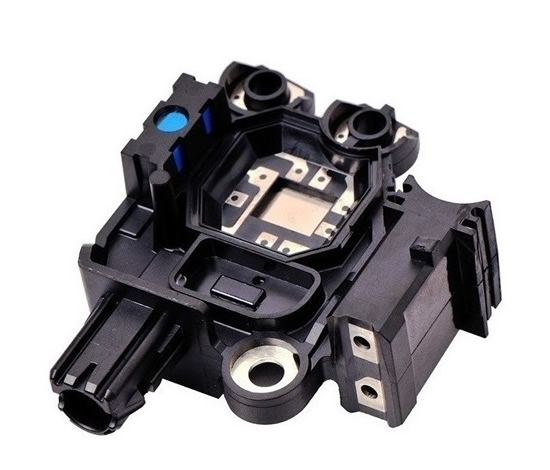

The insert molding part technology is widely using on inverter, converter and power module for EV car applications recently. Ming-Li insert molding tehnology is an injection molding process in which a thermoplastic material is molded around an insert piece or pieces, creating a strongly bonded, integrated assembly. We combine knowledge about metal inserts, plating and molding expertise to create high technique parts. Selected our insert molding technique for the inverter module controling HV motor, DCDC converter and automotive secondaly battery module.

Overmolding offers several advantages that make it a desirable manufacturing process in various industries:

Enhanced Product Performance: Overmolding allows for the combination of different materials with complementary properties. For example, a rigid substrate can be encapsulated with a soft, elastomeric material to improve grip, cushioning, or impact resistance. This combination of materials can enhance the overall performance and functionality of the product.

Improved Product Durability: By providing a protective layer over a substrate, overmolding can enhance the durability and longevity of a product. The overmolded material can protect the substrate from abrasion, impact, moisture, and other environmental factors, extending the product's lifespan.

Enhanced Ergonomics and Comfort: Overmolding can add ergonomic features to products, such as soft grips and contours, which improve user comfort and reduce fatigue during prolonged use. This can be particularly beneficial for handheld tools, handles, and other products where user comfort is essential.

Customized Aesthetics: Overmolding allows for the integration of different colors, textures, and finishes, enabling designers to create visually appealing and aesthetically pleasing products. This customization can enhance brand identity and market appeal.

Reduced Assembly and Labor Costs: Overmolding combines multiple manufacturing steps into a single process, reducing the need for assembly and labor-intensive operations. This can result in cost savings and increased efficiency in production.

Design Flexibility: Overmolding offers designers greater flexibility in product design, allowing for the creation of complex shapes and geometries that would be difficult or impossible to achieve with traditional manufacturing methods. This flexibility enables the development of innovative and unique products.

Improved Sealing and Waterproofing: Overmolding can create a hermetic seal around electronic components or other sensitive parts, protecting them from moisture, dust, and other contaminants. This is particularly important in applications where waterproofing and environmental sealing are required.

Noise and Vibration Damping: Overmolding can dampen vibration and reduce noise by providing a cushioning layer between moving parts or components. This is beneficial in applications where noise reduction and vibration control are important, such as automotive components and handheld devices.

Overall, overmolding offers a versatile and effective solution for enhancing product performance, durability, aesthetics, and user experience across a wide range of industries and applications.

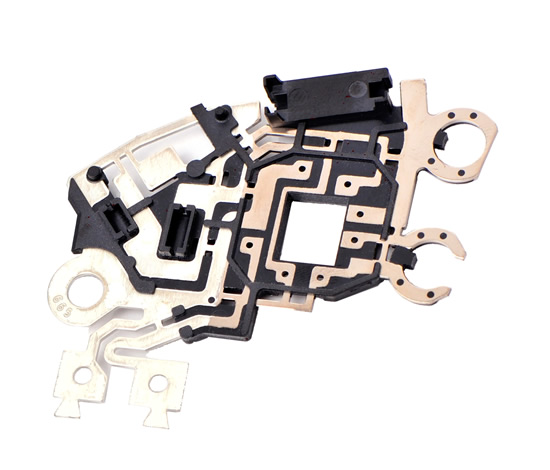

For complex insert molding part, it can make pre molding first and then process overmolding

Ming-Li Precision Insert Molding Automation and Robotics

The new develop for insert molding technology

Insert molding technology continues to advance, driven by the demand for more complex, integrated, and cost-effective manufacturing solutions across various industries. Here are some recent developments in insert molding technology:

1. Advanced Materials Compatibility:

   • •  Development of insert molding materials compatible with a wider range of substrates, including metals, ceramics, glass, and composite materials.
   • •  Introduction of engineered thermoplastics with enhanced adhesion properties, allowing for reliable bonding between the insert and the molded plastic material.

2. Multi-Material Insert Molding:

   • •  Advancements in multi-material insert molding techniques, enabling the simultaneous overmolding of multiple inserts with different materials in a single molding cycle.
   • •  Integration of dissimilar materials with varying properties, such as rigid and flexible plastics, to create complex components with tailored functionalities.

3. Precision Molding Processes:

   • •  Implementation of advanced molding processes, such as micro insert molding and nano insert molding, for producing miniature components with high precision and tight tolerances.
   • •  Use of high-resolution molds, micro-scale tooling, and ultra-precision machining techniques to achieve intricate features and microstructures in insert-molded parts.

4. Insert Automation and Robotics:

   • •  Integration of automated handling systems and robotics for precise and efficient placement of inserts into the mold cavity.
   • •  Use of vision systems, sensors, and feedback controls to ensure accurate positioning and alignment of inserts during the molding process, reducing cycle times and improving repeatability.

5. Embedded Electronics and Sensors:

   • •  Integration of electronic components, sensors, and microchips into insert-molded parts for adding intelligence, connectivity, and functionality.
   • •  Development of overmolding techniques for encapsulating delicate electronic components and creating hermetically sealed enclosures for harsh environments.

6. Surface Modification and Coatings:

   • •  Advancements in surface treatment technologies for improving adhesion between inserts and plastic materials, such as plasma treatment, corona discharge, and chemical etching.
   • •  Application of functional coatings and surface treatments to inserts for enhancing wear resistance, corrosion resistance, and surface finish of the molded parts.

7. In-Mold Assembly and Joining:

   • •  Integration of in-mold assembly and joining techniques, such as ultrasonic welding, laser welding, and heat staking, for attaching inserts to molded parts during the molding process.
   • •  Development of hybrid molding processes combining insert molding with in-mold assembly for producing fully assembled components in a single operation.

8. Sustainability and Recyclability:

   • •  Adoption of eco-friendly materials and processes for insert molding, including bio-based plastics, recycled materials, and closed-loop recycling systems.
   • •  Optimization of molding parameters and material formulations to minimize waste, energy consumption, and environmental impact throughout the manufacturing process.

9. Customization and Personalization:

   • •  Customization of insert molding solutions to meet specific customer requirements, including design flexibility, material selection, and part geometry.
   • •  Integration of additive manufacturing and rapid prototyping technologies for rapid iteration and customization of insert-molded parts in product development cycles.

These developments in insert molding technology are driving innovation in industries such as automotive, electronics, medical devices, consumer goods, and aerospace, enabling the production of more complex, functional, and integrated components with improved performance and cost-efficiency. Continued research and development efforts are expected to further enhance the capabilities and applications of insert molding technology in the future.

Insert Molding Process Overview

1. Design and Material Selection:

• •  The process begins with precise design planning where the compatibility of materials between the insert and the plastic is crucial. Engineers select materials that complement each other to ensure that the thermal and chemical bonding between them is optimal. Common materials for inserts include metals, ceramics, and high-performance plastics.

2. Insert Preparation:

• •  Preformed inserts are prepared by cleaning and sometimes pre-treating them to improve adhesion with the molten plastic. This step is vital to prevent any contaminants from affecting the molding process. Depending on the application, inserts can also be coated or primed.

3. Mold Setup:

• •  Specialized molds are designed and constructed to accommodate the inserts. These molds must not only fit the insert precisely but also allow for easy placement and proper alignment during the molding process.

4. Injection Molding:

• •  The plastic material is heated to its molten state and injected into the mold, where it encapsulates the insert. This stage requires precise control of injection parameters like pressure, temperature, and injection speed to ensure quality and consistency.

5. Cooling and Solidification:

• •  After the plastic is injected, it needs to cool and solidify around the insert. Cooling systems within the mold draw heat out of the plastic, ensuring it solidifies correctly and the dimensions of the finished part are maintained.

6. Ejection and Finishing:

• •  Once the plastic has solidified, the finished part is ejected from the mold. Post-processing steps may include trimming excess material, polishing, or painting the part to enhance its appearance or performance.

This enhanced process flow provides a comprehensive understanding of each phase in insert molding, highlighting the technical nuances that ensure the success of the manufacturing process.

Ming-Li Capabilities of Insert Molding

Ming-Li Precision demonstrates exceptional capabilities in insert molding, integrating advanced plastic injection molding techniques, precision mold design and manufacturing, and a comprehensive Total Quality Management (TQM) system. With over 1,000 sets of insert molding molds produced and more than 50 million insert-molded parts manufactured, Ming-Li is a trusted partner for global leaders seeking high-quality insert-molded products.

•           •  In-house CPK Rate :
               ≧ 1.33
•           •  Tolerance Range :
               Up to +/-0.01mm
•           •  Mold Size :
               600L*600W*600H ; up to 2,000kgs
•           •  Monthly Capacity :
               20 sets Molds / Toolings / Dies ; 8 million pcs / Overmolding & insert molding Injection parts

Ming-Li Capabilities in Insert Molding

Injection Machines and Equipment

Ming-Li’s insert molding capabilities are supported by a wide range of state-of-the-art vertical and horizontal injection machines, enabling the production of diverse product sizes and weights:

• Vertical Injection Machines

  •         •  Tonnage Range: 35T to 250T
  •         •  Maximum Product Size:
    •                 Inches: 8.5 x 11 x 6
    •                 Millimeters: 216 x 279 x 150
  •         •  Precision:
    •                 Mold: ± 0.0015mm
    •                 Product: ± 0.02~0.05mm

• Horizontal Injection Machines

  •         •  Tonnage Range: 15T to 320T
  •         •  Maximum Product Weight: 0.1g~500g

Comprehensive Services and Expertise

1. Precision Injection Mold Design and Manufacturing:

   • Ming-Li designs and manufactures high-precision injection molds that ensure accurate positioning and embedding of inserts within plastic parts. With experience in producing over 1,000 sets of insert molding molds, these molds are tailored to the specific needs of each application, ensuring optimal performance and long-term reliability. Ming-Li’s engineering team collaborates closely with clients to identify potential design or manufacturability issues early in the process, optimizing production and reducing costs.

2. Advanced Injection Molding Technology:

   • Utilizing cutting-edge injection molding technologies, Ming-Li has manufactured over 50 million high-quality insert-molded parts. These technologies are overseen by a team of experienced injection molding engineers, ensuring that each production step adheres to strict quality control standards. Ming-Li’s capabilities allow for the production of parts with complex geometries, ensuring precision and durability.

3. Mold Maintenance and Management:

   • Ming-Li provides comprehensive mold maintenance services to ensure that molds remain in optimal condition throughout their lifecycle. This includes regular inspections, precise adjustments, and necessary repairs, ensuring consistent quality and long-term stability in production.

4. Custom Solutions and Design Support:

   • Ming-Li offers full design support and custom solutions, from concept design to final product delivery. The company utilizes tools such as Autodesk Moldflow for mold flow analysis to help clients optimize designs, improve manufacturability, and enhance product performance. This ensures that each product meets the specific requirements of its application.

5. Quality and Environmental Management Certifications:

   • Ming-Li’s commitment to quality is reflected in its multiple international certifications, including ISO / IATF 16949.

Ming-Li Precision’s insert molding capabilities are comprehensive, covering everything from precision mold design to advanced injection molding technology. With over 1,000 sets of insert molding molds produced and more than 50 million insert-molded parts manufactured, Ming-Li has established itself as a leader in the field. The company’s strong commitment to quality and technical expertise makes it the ideal partner for manufacturers looking to produce high-precision, durable, and environmentally compliant insert-molded products. Beyond efficient manufacturing services, Ming-Li offers extensive support in design, optimization, and environmental responsibility, ensuring that all client needs are fully met.

Case Study for Ming-Li Precision Insert Molding Solution

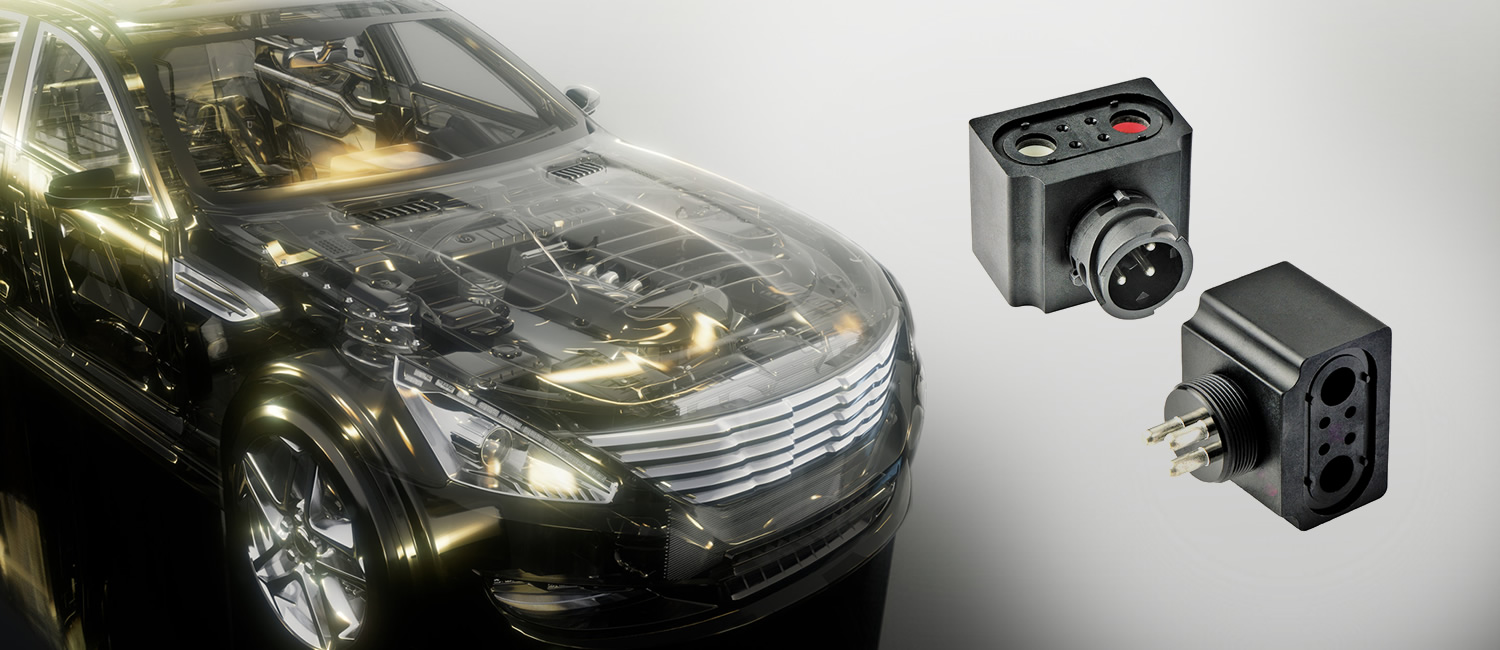

Case Study 1: Automotive Connector Overmolding

Challenge:

An automotive manufacturer needed durable connectors capable of withstanding high temperatures, vibrations, and chemical exposure.

Solution:

Ming-Li Precision utilized their advanced insert molding capabilities to overmold metal inserts with high-performance plastic, ensuring a strong bond and excellent protection for the connectors.

Outcome:

The overmolded connectors met all durability and performance requirements, resulting in improved reliability and extended product life in automotive applications.

Case Study 2: Medical Device Housing

Challenge:

A medical device company required precise and durable housings for their diagnostic equipment to ensure proper fit for electronic components and withstand frequent use.

Solution:

Ming-Li Precision used insert molding to integrate metal inserts into plastic housings, providing precise alignment and enhanced structural integrity.

Outcome:

The housings offered reliable performance, precise fit, and durability, enhancing the overall quality and longevity of the diagnostic equipment.

Case Study 3: Consumer Electronics Enclosures

Challenge:

A consumer electronics firm sought robust and aesthetically pleasing enclosures for a new line of handheld devices, incorporating metal inserts for added strength and functionality.

Solution:

Ming-Li Precision's insert molding process allowed for seamless integration of metal inserts within plastic enclosures, achieving the desired strength and aesthetic appeal.

Outcome:

The resulting enclosures were strong, durable, and visually appealing, leading to high customer satisfaction and a successful product launch.

These case studies showcase Ming-Li Precision's expertise in delivering high-quality, reliable, and customized insert molding solutions across various industries.

Ming-Li Insert Molding Project Example

Further Reading

For those interested in diving deeper into the latest technologies and trends in insert molding, the following resources offer comprehensive insights:

       ► Insert Molding Tech in Ming-Li company

             ► The Overmolding Tech in Ming-Li company

                       ► The common Inserts Materials for Insert Molding

                                 ► The Latest Technologies and Trends for Insert Molding

                                             ► The Insert Molding Common Materials and Their Properties

                                                         ► Insert Molding / Overmolding application in Ming-Li Precision

                                                                     ► LSR Insert Molding / Overmolding (P+R) Technology

                                                                                   ► Advanced Induction Coil Insert Molding Technology

                                                                                                ► Press-Fit(Fish-Eye) Terminal Insert Molding Technology

                                                                                                             ► Silicon Steel Sheet Insert Molding Technology

                                                                                                                          ► Capacitor and Resistor Insert Molding Technology

                                                                                                                                        ► Magnet Insert Molding Technology

Further understanding for Insert Molding / Overmolding

This is just a partial overview of insert molding and overmolding. Are they the right solutions for you? Not sure how to apply them to your next project? Just contact our technical experts and we can offer helpful advice about how to get the best results from both processes.
