Insert Molding & Overmoling Tooling
Insert Molding Mold & Overmolding Tooling Manufacture

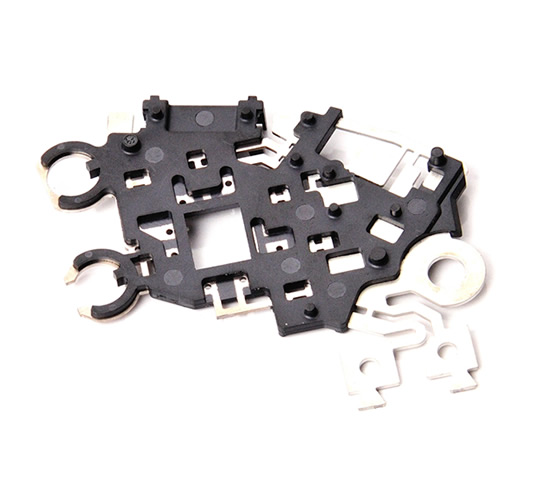

A high-quality insert molding mold, insert molding tooling, overmolding mold, and overmolding tooling system is essential for producing reliable high-performance plastic components. For automotive, electronics, power modules, medical devices, and industrial applications, mold precision directly affects product quality, dimensional stability, assembly reliability, and long-term production consistency.
Ming-Li Precision specializes in advanced insert molding mold and overmolding mold engineering, helping global customers transform complex product designs into stable, scalable, and mass-producible tooling solutions.
What Is an Insert Molding Mold and Insert Molding Tooling?
An insert molding mold is a specialized mold system designed to accurately position metal or non-plastic inserts inside a plastic component. The purpose of insert molding tooling is to hold inserts securely, prevent movement during injection, control flash, and ensure repeatable dimensional accuracy during mass production.
Compared with standard plastic injection molds, an insert molding mold requires more advanced mold engineering because insert positioning, shut-off accuracy, mold steel selection, and thermal compensation all directly affect product performance.
Common Insert Types
- Brass inserts
- Stainless steel terminals
- Stamped metal parts
- Bushings and threaded inserts
- Electrical terminals
- Magnets and sensors
- Ceramic components
- Electronic components
The success of an insert molding mold depends heavily on precision mold design. Even slight insert movement can result in dimensional variation, flash, cosmetic defects, poor bonding, or assembly failure.
Common Applications of Insert Molding Mold
Automotive
Automotive connectors, terminals, sensor housings, and power-related components with IATF 16949 compliant production and automotive-grade insert positioning control.
Power Modules
Power module housings, busbar-related components, insulated frames, and high-temperature insert structures for automotive-grade power electronics and EV applications.
Medical & Electronics
Medical device components, electronic terminals, precision gears, and compact functional assemblies requiring stable tooling precision and dimensional repeatability.
What Is an Overmolding Mold and Overmolding Tooling?
An overmolding mold is a mold system used to form one material over another substrate. Overmolding tooling is commonly used when a product requires sealing, soft-touch function, bonding, insulation, protection, or improved appearance.
Unlike insert molding molds, which mainly focus on insert positioning, an overmolding mold must control substrate retention, shut-off accuracy, bonding geometry, material compatibility, and dimensional stability.
Substrate Control
Precise holding and alignment of the first component during the overmolding stage.
Shut-Off Accuracy
High-precision shut-off structure to reduce flash, leakage, and cosmetic defects.
Bonding Strategy
Material compatibility, mechanical interlock, and bonding geometry are reviewed during mold design.
Insert Molding Mold vs Overmolding Mold: Key Tooling Differences
Although both technologies involve multi-material integration, the mold engineering challenges are different. Ming-Li evaluates each project carefully to select the most suitable insert molding tooling or overmolding tooling concept.
| Category | Insert Molding Mold | Overmolding Mold |
|---|---|---|
| Primary Function | Encapsulate inserts | Bond or cover substrate materials |
| Main Challenge | Insert positioning accuracy | Material bonding and sealing |
| Tooling Complexity | High | Very high |
| Critical Mold Feature | Insert locating and shut-off | Substrate retention and shut-off |
| Flash Control | Around metal inserts | Around substrate and sealing areas |
| Automation Requirement | Insert loading accuracy | Substrate positioning accuracy |
| Tolerance Control & Flash Mitigation | Ultra-precision mold manufacturing up to ±1 μm minimizes insert displacement risk and significantly reduces flash around metal terminals. | Ultra-precision shut-off design minimizes resin leakage and flash at substrate bonding interfaces. |
Why Insert Molding Mold Design Matters
A successful insert molding mold must do more than create the plastic shape. It must control insert position, protect functional areas, prevent flash, and maintain dimensional accuracy throughout long-term production.
Poor insert molding tooling design may cause insert shifting, unstable dimensions, weak retention, high scrap rate, mold wear, or assembly failure. For precision components such as connectors, power module housings, medical parts, and sensor housings, tooling quality directly determines product reliability.
Insert Positioning Accuracy
Dedicated locating systems, mechanical locking structures, vacuum holding concepts, and precision nesting features help prevent insert movement.
Flash Prevention
Optimized shut-off structures and ultra-precision machining reduce flash risk around metal inserts and functional areas.
Thermal Compensation
Material shrinkage, insert tolerance, thermal deformation, and cavity compensation are reviewed during mold design.
Critical Design Considerations for Overmolding Tooling
A high-quality overmolding mold requires precise substrate control and reliable shut-off design. The tooling must keep the first component stable while the second material is injected or formed around it.
Substrate Retention
The substrate must remain stable inside the overmolding mold to avoid misalignment, bonding defects, flash, and warpage.
Shut-Off Design
Shut-off design is one of the most critical areas in overmolding tooling because it directly affects resin leakage and cosmetic quality.
Material Compatibility
Overmolding mold design must consider chemical compatibility, thermal expansion difference, mechanical interlock, and adhesion performance.
Material Considerations for Insert Molding Mold and Overmolding Mold Engineering
At Ming-Li Precision, mold design is optimized according to material behavior. Different resins require different tooling strategies, especially for high-temperature and glass-filled engineering plastics.
High-Temperature Plastics
- PPS
- PEEK
- PEI
- PA9T
- LCP
Reinforced Materials
- Glass fiber reinforced nylon
- Mineral-filled materials
- Carbon-filled engineering plastics
Multi-Material Tooling
- TPE overmolding mold
- TPU overmolding tooling
- LSR and plastic integration tooling
- Metal insert molding mold
Each material requires careful consideration of venting, cooling, steel selection, shrinkage compensation, and mold wear resistance.
Ming-Li Precision Tooling Development Process
Ming-Li supports customers from early design review to precision mold manufacturing and production validation. Our tooling process is designed to reduce risk before mass production.
DFM Review
Mold Concept
Precision Tooling
Trial & Validation
Production Support
Why High-Precision Tooling Matters
A successful product begins with precision mold engineering. Even a strong product design may fail if the mold cannot maintain stability during production.
- Over 5,000 precision molds manufactured
- More than 1,000 insert molding mold experiences
- Ultra-precision machining accuracy up to ±1 μm
- YASDA ultra-precision CNC machining
- GF AgieCharmilles EDM and Wire Cut
- Moldflow simulation support
- ZEISS precision metrology and CT scanning
- IATF 16949 certified quality system
Why Choose Ming-Li Precision for Insert Molding Tooling and Overmolding Mold Manufacturing?
Choosing the right insert molding mold manufacturer or overmolding mold manufacturer directly affects product quality, mold lifetime, production efficiency, and long-term reliability.
- Advanced insert molding tooling engineering
- High-precision overmolding mold manufacturing
- DFM and manufacturability optimization
- Engineering plastic tooling experience including PPS, PEEK, LCP, and PA66 GF
- Automation-ready tooling concepts
- Stable support from mold development to mass production
From automotive connectors and power module housings to medical, electronics, bicycle, and industrial applications, Ming-Li develops precision tooling solutions for challenging plastic components.
Frequently Asked Questions About Insert Molding Mold and Overmolding Tooling
What is an insert molding mold?
An insert molding mold is a specialized mold designed to hold metal or non-plastic inserts in position while plastic material is formed around them.
What is insert molding tooling used for?
Insert molding tooling is used to produce plastic components integrated with metal inserts, terminals, bushings, magnets, sensors, or electronic components.
What is an overmolding mold?
An overmolding mold is used to form one material over another substrate for sealing, protection, bonding, insulation, or improved product function.
What is the difference between insert molding tooling and overmolding tooling?
Insert molding tooling focuses on holding and encapsulating inserts, while overmolding tooling focuses on bonding or covering a substrate with another material.
What materials are commonly used in insert molding mold projects?
Common materials include PPS, PEEK, PA66 GF, PBT, LCP, PEI, and other high-performance engineering plastics.
How much does insert molding tooling cost?
Insert molding tooling cost depends on part geometry, insert complexity, tolerance requirements, mold steel, cavity number, automation needs, and expected production volume. Ming-Li primarily provides an integrated manufacturing solution combining precision tooling and in-house production support to ensure stable quality, process consistency, and long-term tooling performance.
Does Ming-Li provide tooling-only projects?
Ming-Li primarily provides an integrated manufacturing solution combining precision tooling and in-house production support to ensure stable quality, process consistency, and long-term tooling performance. For selected strategic projects, tooling-only discussions may be evaluated case by case.
